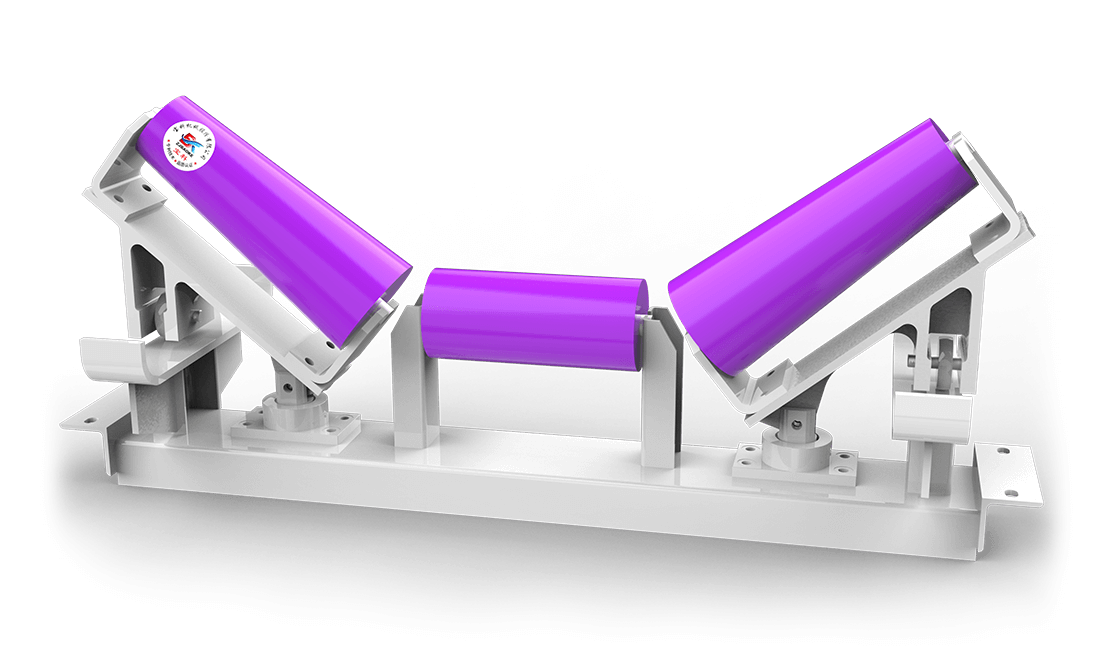

Carrier Taper Self-aligning Idlers

Belt Width	Model	Roller Model	Roller Model	D	D1	D2	L1	L2	H	H1	H2	E	A	P	Q	d	Bearing No.	MASS (Kg)
800	-080-108-205	BK TR-89(108)-205-340	BK CR-108-205-250	108	89	133	250	340	270	146	395	1150	1090	170	130	M12	205	77.3
1000	-100-133-305	BK TR-108(159)-305-340	BK CR-133-305-315	133	108	159	315	415	325	173.5	478	1350	1290	220	170	M16	305	79.5
1000	-100-159-306	BK TR-108(159)-306-415	BK CR-159-306-315	159	108	159	315	415	355	190.5	508	1350	1290	220	170	M16	306	99.7
1200	-120-133-305	BK TR-108(176)-305-500	BK CR-133-305-380	133	108	176	380	500	360	190.5	548	1600	1540	260	200	M16	305	115.0
1200	-120-159-306	BK TR-133(194)-306-500	BK CR-159-306-380	159	133	194	380	500	390	207.5	578	1600	1540	260	200	M16	306	119.2
1400	-140-133-305	BK TR-108(176)-305-550	BK CR-133-305-465	133	108	176	465	550	380	198.5	584	1800	1740	280	220	M16	305	108.7
1400	-140-159-306	BK TR-133(194)-306-550	BK CR-159-306-465	159	133	194	465	550	410	215.5	615	1800	1740	280	220	M16	306	119.9
1600	-160-159-307	BK TR-133(219)-307-600	BK CR-159-307-530	159	133	219	530	600	450	225.5	750	1980	2050	300	240	M16	307	211.9
1600	-160-159-308	BK TR-133(219)-308-600	BK CR-159-308-530	159	133	219	530	600	450	225.5	750	1980	2050	300	240	M16	308	217.5
1800	-180-159-307	BK TR-133(219)-307-670	BK CR-159-307-600	159	133	219	600	670	465	225.5	770	2180	2250	340	270	M16	307	246.3
1800	-180-159-308	BK TR-133(219)-308-670	BK CR-159-308-600	159	133	219	600	670	465	225.5	770	2180	2250	340	270	M16	308	249.7
